2 x 4 LED vaj huam sib luag teeb
Nov 03, 2025
Tso lus
Puas yog 2x4 LED Flat Vaj Huam Sib Luag Lub Teeb Ua Haujlwm?
Yog lawm, 2x4 coj vaj huam sib luag tiaj tiaj teeb haum rau cov chaw ua haujlwm poob qab nthab zoo kawg nkaus. Cov khoom siv no ntsuas 2 ko taw los ntawm 4 ko taw thiab sib txuas ua ke nrog 15/16-inch T-bar kab sib chaws pom nyob rau hauv feem ntau cov tsev lag luam, ua rau lawv zoo tagnrho hloov rau cov khoom siv fluorescent.
Yuav ua li cas 2 x 4 LED Flat Vaj Huam Sib Luag Lub Teeb Pom Kev Standard Office Ceilings
Cov chaw ua lag luam feem ntau siv cov txheej txheem qab nthab nrog cov qauv kab sib chaws. Qhov ntsuas 2x4 yog hais txog qhov qhib qhov loj hauv daim phiaj qab nthab -ob txhais taw dav los ntawm plaub taw ntev. Qhov kev tsim qauv no tau tshwm sim los ntawm kaum xyoo ntawm kev tsim kho kev lag luam thiab tseem yog qhov tseem ceeb tshaj plaws thoob plaws North America.
Tus qauv 15/16-inch kab sib chaws, feem ntau hu ua "1-inch wide grid," haum rau 2x2 thiab 2x4 fixtures. Thaum txhim kho lub 2x4 LED vaj huam sib luag, lub fixture poob ncaj qha rau hauv daim phiaj qhib thiab so ntawm T-bar lub moj khaum. Feem ntau cov vaj huam sib luag muaj xws li kev ruaj ntseg cables uas txuas rau lub qab nthab cov qauv saum toj no, muab kev ruaj ntseg ntxiv tshaj qhov kev txhawb nqa daim phiaj.
Qhov tseeb qhov ntev ntawm 2x4 LED panels ntsuas kwv yees li 23.7 txog 23.75 nti dav los ntawm 47.75 txog 47.8 nti ntev. Qhov kev txo qis me ntsis los ntawm tag nrho 24x48 ntiv tes tso cai rau kom haum rau hauv cov kab sib chaws thaum tiv thaiv kev khi lossis teeb meem kev teeb tsa. Cov tuab tuab li ntawm 1.34 txog 1.63 ntiv tes, ua rau lawv haum rau feem ntau qhov chaw plenum.
Vim li cas Chaw Haujlwm Xaiv 2x4 LED Vaj Huam Sib Luag
Cov teeb pom kev hauv chaw ua haujlwm xav tau sib txawv ntawm cov chaw nyob lossis cov ntawv thov kev lag luam. Cov neeg ua haujlwm siv sijhawm 8-12 teev ib hnub nyob rau hauv lub teeb pom kev zoo, ua kom pom kev zoo rau kev tsim khoom thiab kev noj qab haus huv.
Kev xav tau kev faib tawm lub teeb
Cov chaw ua haujlwm xav tau kev teeb pom kev zoo los tiv thaiv qhov muag thiab txhawb nqa ntau yam haujlwm los ntawm kev ua haujlwm hauv computer mus rau kev nyeem ntawv. Lub Illuminating Engineering Society pom zoo 40-50 lumens ib square feet rau cov chaw ua haujlwm dav dav. Ib tug raug 2x4 coj tiaj tus vaj huam sib luag lub teeb uas tsim 5,000-7,000 lumens npog thaj tsam li 125-175 square feet ntawm qhov kev qhia no.
Tsoos fluorescent troffers nrog plaub T8 raj siv 80-120 watts thaum muab lub teeb tsis sib xws. Cov chaw tsaus nti feem ntau tshwm sim ntawm cov raj, thiab lub teeb pom kev zoo degraded ntau dhau sijhawm. Ntug-lit thiab backlit LED panels faib lub teeb sib npaug ntawm tag nrho 2x4 nto, tshem tawm cov duab ntxoov ntxoo thiab cov hotspots.
Lub zog ua haujlwm
Kev txuag hluav taws xob los ntawm LED vaj huam sib luag ua pov thawj rau lawv qhov kev saws me nyuam hauv tus nqi- nco qab qhov chaw ua haujlwm. Lub fluorescent 2x4 troffer nrog plaub 32-watt T8 teeb kos kwv yees li 128 watts nrog rau qhov poob qis. Sib piv LED vaj huam sib luag ua haujlwm ntawm 30-60 watts nyob ntawm qhov chaw tso zis, sawv cev rau 45-75% lub zog txo.
Rau 10,000 square feet chaw ua hauj lwm nrog 50 fixtures ua hauj lwm 12 teev ib hnub twg ntawm $0.13 ib kWh, hloov los ntawm fluorescent rau LED panels txuag kwv yees li $3,000-4,500 ib xyoos twg. Cov nyiaj khaws cia ntau dua ntawm lub vaj huam sib luag 50,000-teev kev ua neej nyob (kwv yees li 11 xyoo ntawm 12 teev ib hnub) tshaj $ 35,000 ua ntej suav rau txo tus nqi kho.
Installation Simplicity
Retrofitting chaw ua haujlwm nrog 2x4 coj lub teeb vaj huam sib luag lub teeb yuav tsum muaj hluav taws xob tsawg tsawg thaum hloov cov khoom siv fluorescent uas twb muaj lawm. Feem ntau cov kev teeb tsa siv sijhawm 30-55 feeb rau ib qho kev sib tw, suav nrog:
Disconnecting lub qub fixture tus nplawm connector
Tshem tawm cov fluorescent troffer
Tso lub LED vaj huam sib luag rau hauv daim phiaj qhib
Txuas lub nplawm rau LED tsav tsheb
Kev ruaj ntseg cable rau qab nthab qauv
Cov neeg cog lus feem ntau kwv yees ib tus kws tsim hluav taws xob tsim nyog tuaj yeem nruab 8-10 qhov kev sib tw thaum lub sijhawm ua haujlwm 8-teev hauv cov qauv chaw ua haujlwm. Qhov kev hloov pauv sai no txo qis kev cuam tshuam rau kev ua lag luam, tso cai rau kev teeb tsa thaum lub sijhawm tawm lossis ua haujlwm nyob ib puag ncig qhov chaw nyob.
Xaiv txoj cai 2x4 LED Flat Vaj Huam Sib Luag Teeb Specifications
Xaiv qhov tsim nyog 2x4 LED panels suav nrog kev nkag siab cov ntsiab lus tshaj li qhov yooj yim sib xws.
Lumen tso zis thiab Efficiency
Niaj hnub nimno 2x4 coj vaj huam sib luag vaj huam sib luag teeb muaj li ntawm 3,500 txog 9,000 lumens, nrog rau wattage xws li 30W txog 72W. Cov qauv ua tau zoo tshaj plaws ua tiav 125-140 lumens ib watt. Rau cov qauv siv hauv chaw ua haujlwm, 5,000-6,500 lumen panels muab cov teeb pom kev txaus tsis muaj qhov ci ntau dhau.
Kev ua tau zoo tseem ceeb vim tias lumens siab dua -ib -watt ratios xa ntau lub teeb thaum siv hluav taws xob tsawg. Lub vaj huam sib luag ua tau 6,500 lumens ntawm 50 watts (130 lm / W) ua tau zoo tshaj ib qho xa 6,000 lumens ntawm 60 watts (100 lm / W) hauv ob qho tib si kev khiav hauj lwm nqi thiab hluav taws xob tiam.
Xim kub xaiv
Xim kub, ntsuas hauv Kelvin, cuam tshuam rau lub chaw ua haujlwm ambiance thiab kev nplij siab ntawm cov neeg ua haujlwm. Peb txoj kev xaiv tus qauv ua haujlwm sib txawv:
3000K (Sov Dawb): Tsim kom muaj chaw so kom haum rau chav so thiab chaw txais tos
4000K (Neutral Dawb): Ua kom sov sov thiab ci ntsa iab rau cov chaw ua haujlwm dav dav
5000K (hnub ci): Muab lub teeb txias txias zoo tagnrho rau kev ua haujlwm kom ntxaws thiab chav sib tham
Kev tshawb fawb los ntawm National Renewable Energy Laboratory pom cov chaw ua haujlwm tswj 4000-5000K xim kub tau tshaj tawm 3-5% kev tsim khoom nce ntxiv piv rau qhov chaw tsis sib xws lossis tsis zoo xaiv teeb pom kev zoo. Ntau lub vaj huam sib luag niaj hnub suav nrog cov xim kub hloov pauv, tso cai hloov kho ntawm 3000K, 4000K, thiab 5000K yam tsis tau hloov cov khoom siv.
Xim Rendering Index
CRI ntsuas qhov teeb pom kev zoo li cas qhia cov xim tiag tiag, nrog rau lub hnub ci ntuj qhov qhab nia 100. Chaw ua haujlwm ib puag ncig tau txais txiaj ntsig los ntawm CRI qhov ntsuas siab tshaj 80, kom ntseeg tau cov ntaub ntawv, cov ntxaij vab tshaus hauv computer, thiab lub ntsej muag zoo li ntuj. Feem ntau zoo 2x4 LED vaj huam sib luag ua tiav CRI 80-85, txaus rau cov qauv chaw ua haujlwm.
Cov ntawv thov tshwj xeeb xws li graphic designs studios lossis chaw kho mob tej zaum yuav xav tau CRI 90+ rau xim - ua haujlwm tseem ceeb. Cov vaj huam sib luag hwm no raug nqi 15-25% ntau dua tab sis xa cov xim zoo dua.
Muaj peev xwm dimming
Dimmable 2x4 LED vaj huam sib luag xav tau 0-10V dimming keyboards rau kev tswj. Qhov qis-voltage dimming system tso cai rau kev hloov kho du ntawm 10-100% ci ntsa iab yam tsis muaj flicker lossis hum. Dimming ua haujlwm rau ntau lub hom phiaj:
Txo cov teeb ci thaum lub sij hawm nthuav tawm
Kho qhov ci ci raws li lub hnub ci ntuj muaj nyob
Txo kev siv hluav taws xob thaum lub sijhawm ua haujlwm qis -
Lub rooj sib tham ntawm cov neeg nyob hauv kev nplij siab nyiam
Cov chaw siv hnub ci sau qoob loo- tsis siv neeg dimming teeb pom kev zoo li lub teeb ntuj nce ntxiv - tuaj yeem txo cov teeb pom kev siv hluav taws xob ntxiv los ntawm 20-30% hauv thaj tsam thaj tsam nrog lub qhov rais.
Installation Methods rau txawv chaw ua hauj lwm layouts
Thaum lub qab nthab sib xyaw ua ke yog tus qauv, lwm txoj hauv kev mounting haum rau ntau qhov xwm txheej architectural.
Recessed Drop Ceiling Installation
Txoj hauv kev uas feem ntau cuam tshuam nrog xa cov vaj huam sib luag ncaj qha rau hauv T-bar daim phiaj qhib. Lub vaj huam sib luag nyob rau ntawm daim phiaj flanges nrog nws cov pem hauv ntej nto yaug nrog qab nthab vuas. Installation yuav tsum tau:
Kaw lub hwj chim ntawm lub Circuit Court breaker
Tshem tawm cov pobzeb qab nthab uas twb muaj lawm los yog kho qhov muag
Txheeb xyuas qhov hluav taws xob nplawm saum lub qab nthab
Tso lub LED vaj huam sib luag nyob rau hauv daim phiaj qhib
Txuas tus nplawm rau lub vaj huam sib luag tus tsav tsheb
Kev ruaj ntseg cable rau kev txhawb nqa
Txhim kho lub zog thiab kev sim
Txoj kev no ua haujlwm rau 90% ntawm qhov chaw ua haujlwm retrofit tej yaam num uas cov txheej txheem tshem tawm ceilings nyob.
Daim ntawv thov Surface Mount
Cov chaw ua haujlwm nrog cov ceilings nyuaj (drywall los yog plaster) yuav tsum tau mount thav duab. Cov aluminium nyias nyias txuas rau lub qab nthab nrog screws, tsa lub vaj huam sib luag kwv yees li 1 nti ntawm qhov chaw. Nto mounting suits:
Cov chaw ua haujlwm niaj hnub nrog cov qauv nthuav tawm zoo nkauj
Qhov chaw uas tsis txaus plenum qhov tob rau recessed installation
Kev kho dua tshiab uas cov qab nthab uas twb muaj lawm tseem nyob hauv qhov chaw
Nto mount installation yuav siv sij hawm ntev me ntsis (45-70 feeb ib fixture) vim yog positioning, drilling, thiab anchoring yuav tsum tau.

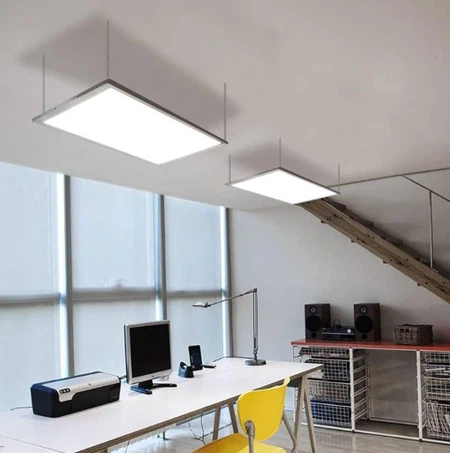

Ncua tseg / Pendant Installation
Qee qhov chaw ua haujlwm tam sim no muaj pendant- dai teeb pom kev zoo rau kev nyiam vaj tsev. Pendant mount cov khoom siv tshem tawm 2x4 panels ntawm cables lossis stems los ntawm cov qauv qab nthab. Txoj kev no muab:
Adjustable qhov siab rau txawv qab nthab configurations
Qhov txawv ntawm qhov pom kev cuam tshuam hauv kev txais tos lossis kev sib koom tes
Flexibility nyob rau hauv qhib - npaj qhov chaw tsis muaj qab nthab
2 x 4 LED Flat Vaj Huam Sib Luag Lub Teeb Saib Xyuas thiab Kev Ua Haujlwm Ntev
LED vaj huam sib luag tau txo qis txij nkawm piv rau cov tshuab fluorescent.
Kev sib piv Lifespan
Zoo 2x4 coj tiaj tus vaj huam sib luag teeb pom kev zoo yog ntsuas rau 50,000-100,000 teev ntawm kev ua haujlwm. Thaum 12 teev txhua hnub (kev siv chaw ua haujlwm ib txwm), qhov no txhais tau hais tias:
50,000 teev=11.4 xyoo
100,000 teev=22.8 xyoo
Fluorescent teeb yuav tsum tau hloov txhua 10,000-20,000 teev (2-4.5 xyoo), nrog ballasts poob tom qab 40,000-60,000 teev. Nyob rau lub sijhawm 20 xyoo, cov tshuab fluorescent xav tau 4-6 lub teeb hloov thiab 1-2 ballast hloov ib lub teeb. LED panels xav tau xoom hloov thaum lub sijhawm tib lub sijhawm.
Lumen Maintenance
LED vaj huam sib luag tswj qhov ci zoo dua li cov tshuab fluorescent. Cov LEDs zoo khaws 90% ntawm cov zis thawj zaug ntawm 50,000 teev (L90), piv rau fluorescents uas degrade mus rau 70-80% hauv 10,000 teev. Qhov kev tso tawm zoo ib yam no tshem tawm qhov maj mam dimming uas ua rau muaj kev laus fluorescent installation.
Hom kev ua tsis tiav
Thaum lub teeb fluorescent tsis ua haujlwm, lawv flicker, tsaus ntuj ntawm qhov kawg, lossis nres kiag li - tsim teeb meem tam sim ntawd. LED panels tsis tshua muaj tshwm sim sai sai. Es tsis txhob, lawv maj mam dim ntau xyoo lawm. Kev tsav tsheb tsis ua haujlwm (qhov teeb meem LED vaj huam sib luag feem ntau tshwm sim tom qab 40,000-60,000 teev thiab tuaj yeem hloov pauv yam tsis hloov tag nrho cov khoom siv hauv ntau qhov qauv.
Kev Ntsuas Tus Nqi rau Kev Ua Haujlwm Ua Haujlwm
Nkag siab tag nrho cov nqi ntawm cov tswv cuab qhia paub txog kev txiav txim siab yuav khoom.
Kev nqis peev pib
Zoo 2x4 LED vaj huam sib luag li ntawm $ 45-120 rau ib qho kev sib tw nyob ntawm cov yam ntxwv:
Cov qauv yooj yim ($ 45-65)wattage / CCT, tus qauv ua tau zoo (100-110lm / W)
Cov qauv nruab nrab-tier ($70-95)Kev xaiv wattage / CCT, kev ua haujlwm siab (120-130 lm / W), dimming
Cov qauv hwm ($ 100-120): Kev ua tau zoo tshaj plaws (135+ lm/W), siab CRI (90+), kev tswj siab heev
Cov nqi ua haujlwm rau kev teeb tsa feem ntau khiav $ 40-80 rau ib qho kev sib tw, sib txawv ntawm thaj tsam, qab nthab qhov siab, thiab cov xwm txheej uas twb muaj lawm.
Cov Nqi Ua Haujlwm
Sib piv lub chaw ua haujlwm 50-fixture tshaj 10 xyoo (ua haujlwm 12 teev txhua hnub, 260 hnub ib xyoos ib zaug):
Fluorescent System (80W ib lub teeb):
Lub zog txhua xyoo: 12,480 kWh
Tus nqi txhua xyoo ntawm $ 0.13 / kWh: $ 1,622
10-xyoo zog nqi: $16,220
Hloov teeb (4x): $4,500
Ballast hloov (1x): $3,000
Tag nrho 10-xyoo tus nqi: $ 23,720
LED System (50W ib lub teeb):
Lub zog txhua xyoo: 7,800 kWh
Tus nqi txhua xyoo ntawm $ 0.13 / kWh: $ 1,014
10-xyoo zog nqi: $10,140
Hloov pauv: $0
Tag nrho 10-xyoo tus nqi: $ 10,140
Cov nyiaj khaws cia: $ 13,580 tshaj 10 xyoo, ntxiv rau tshem tawm kev cuam tshuam los ntawm kev saib xyuas cov xwm txheej.
Utility Rebates
Ntau lub tuam txhab hluav taws xob muab nyiaj rov qab rau LED retrofits. Daim ntawv pov thawj tsim teeb pom kev zoo (DLC) tsim nyog rau kev sib tw rau cov nyiaj rov qab los ntawm $ 15-40 ib qho kev sib tw. Ntawm 50-fixture project, rebates tuaj yeem txo tus nqi pib los ntawm $ 750-2,000, txhim kho lub sijhawm them rov qab los ntawm 2-3 xyoo mus rau 1.5-2 xyoo.
Hais txog Cov Teeb Meem Chaw Ua Haujlwm Zoo Tshaj Plaws
2x4 LED vaj huam sib luag daws teeb meem tsis tu ncua hauv chaw ua haujlwm ib puag ncig.
Flicker Elimination
Fluorescent fixtures flicker ntawm 120Hz (ob zaug ntawm AC zaus), ua rau lub qhov muag mob, mob taub hau, thiab txo cov concentration. Thaum feem ntau imperceptible consciously, qhov flicker ntsuas no cuam tshuam rau qee tus neeg. Cov tsav tsheb zoo LED muab flicker - ua haujlwm dawb, tshem tawm qhov kev ntxhov siab tsis pom.
Pib Instant
Fluorescent teeb yuav tsum sov- lub sij hawm nce, ua kom txo lub teeb tso zis rau 30-60 vib nas this tom qab hloov mus. LED vaj huam sib luag ncav cuag qhov ci ntsa iab tam sim ntawd, tshem tawm lub sijhawm tsaus ntuj thaum nkag mus rau qhov chaw lossis rov ua kom muaj zog tom qab hluav taws xob.
Kub Tolerance
Lub teeb fluorescent poob kev ua haujlwm thiab kev ua neej nyob hauv qhov chaw txias, teeb meem rau cov chaw ua haujlwm nrog cua txias txias. LED vaj huam sib luag ua haujlwm zoo thoob plaws -4℃F txog 104℃F (-20℃txog 40 degree), tswj kev ua haujlwm zoo ib yam tsis hais txog HVAC chaw.
Txo cov cua sov tso tawm
Fluorescent fixtures pov tseg kwv yees li 70% ntawm lub zog raws li cua sov, ua rau kom txias loads. LED vaj huam sib luag hloov 85-90% ntawm lub zog rau lub teeb, ua kom muaj cua sov tsawg. Hauv huab cua-cov chaw ua haujlwm txias, qhov kev txo qis no txo cov nqi cua txias los ntawm 3-5% hauv qhov chaw teeb pom kev zoo.
Kev koom ua ke nrog Cov Chaw Ua Haujlwm Niaj Hnub No
Niaj hnub nimno 2x4 LED vaj huam sib luag haum rau kev tswj hwm qib siab.
Kev Paub Txog Neeg Nyob
Cov vaj huam sib luag nrog ua - nyob rau hauv cov khoom siv hluav taws xob lossis cov khoom siv hluav taws xob sab nraud tuaj yeem dim lossis kaw thaum qhov chaw tsis nyob. Hauv chav sib tham, thaj chaw so, thiab chaw ua haujlwm ntiag tug, nyob hauv -raws li kev tswj xyuas kom txo tau lub zog ntawm 20-35% piv rau kev hloov pauv.
Hnub ci sau qoob
Photosensor- nruab cov tshuab ua kom pom kev teeb pom kev zoo li lub hnub ci ntuj nce los ntawm qhov rais. Cov cheeb tsam Perimeter nrog kev txaus siab tuaj yeem ua tiav 25-40% kev txuag hluav taws xob ntxiv thaum nruab hnub.
Networked Lighting Controls
Advanced LED panels koom ua ke nrog kev tswj hwm lub tsev ntawm cov kev cai wireless lossis wired networks. Cov tshuab ntse no pab tau:
Kev teem sijhawm ntawm tus kheej fixture thiab dimming
Kev siv qhov chaw tsom xam raws li cov qauv teeb pom kev zoo
Predictive txij nkawm ua ntej tsis ua hauj lwm tshwm sim
Lub zog dashboards qhia qhov tseeb - siv sijhawm
Environmental Impact
LED kev saws me nyuam muab ntsuas qhov txiaj ntsig ib puag ncig.
Mercury Elimination
Txhua lub teeb fluorescent muaj 3-5mg mercury. Ib lub chaw ua haujlwm 50-fixture hloov cov teeb txhua txhua 3 xyoos pov tseg kwv yees li 200 lub teeb tshaj 20 xyoo-ze li 1 gram ntawm mercury. LED panels tsis muaj mercury, tshem tawm cov dej khib nyiab pov tseg.
Carbon Footprint txo
Lub 45-75% kev txuag hluav taws xob los ntawm LED vaj huam sib luag ncaj qha txo cov pa roj carbon emissions. Siv US qhov nruab nrab ntawm 0.92 phaus CO₂ ib kWh, 50-fixture office hloov ntawm fluorescent rau LED tiv thaiv kwv yees li 4,300 phaus (2.15 tons) ntawm CO₂ emissions txhua xyoo-sib npaug rau cog 100 ntoo lossis tshem tawm ib lub tsheb ntawm txoj kev.
Txo cov khoom pov tseg
Tshaj li 20 xyoo, cov tshuab fluorescent tsim cov khib nyiab ntau:
200-300 teeb tsis tau
50-75 poob ballasts
Ntim cov ntaub ntawv los ntawm kev yuav khoom dua
LED systems tsim xoom teeb pov tseg nyob rau tib lub sij hawm, tsuas yog thaum kawg fixture pov tseg thaum kawg - ntawm - lub neej.
Cov lus nug nquag
2x4 LED vaj huam sib luag puas tuaj yeem hloov cov fluorescent troffer?
Yog lawm, 2x4 LED vaj huam sib luag hloov cov fluorescent troffer haum cov qauv kab sib chaws qhib. Kev sib txuas hluav taws xob rov siv cov nplawm uas twb muaj lawm, tshem tawm kev rov ua dua tshiab. Txawm li cas los xij, txheeb xyuas plenum qhov tob tshaj 3-4 ntiv tes kom haum rau lub vaj huam sib luag tsav tsheb.
Puas yog LED panels ua haujlwm nrog cov fluorescent dimmer keyboards uas twb muaj lawm?
Tsis yog, fluorescent dimmers tsis sib haum nrog LED panels. LED vaj huam sib luag xav tau 0-10V dimming systems tshwj xeeb tsim rau LED thev naus laus zis. Kev sim siv fluorescent dimmers ua rau flickering, buzzing, thiab muaj peev xwm tsav tsheb puas. Hloov kho kom haum rau 0-10V dimmers thaum retrofitting.
Muaj pes tsawg 2x4 LED vaj huam sib luag puas yuav tsum tau ua haujlwm?
Muab xam raws li 40-50 lumens ib square feet rau kev ua haujlwm hauv chaw ua haujlwm. Lub vaj huam sib luag 5,500-lumen npog kwv yees li 110-140 square feet. Rau qhov chaw ua haujlwm 2,000 square feet, nruab 14-18 panels rau kev pabcuam txaus. Kho kom haum rau lub teeb pom kev zoo thiab kev ua haujlwm tshwj xeeb.
Yuav ua li cas yog tias ib lub vaj huam sib luag LED tsis ua haujlwm?
Tsis zoo li cov tsev txhab nyiaj fluorescent qhov twg ib lub teeb ua tsis tau zoo ua rau tag nrho cheeb tsam, LED vaj huam sib luag tsis ua haujlwm cuam tshuam rau qhov kev sib tw nkaus xwb. Cov vaj huam sib luag zoo tsis tshua muaj kev poob siab tam sim ntawd -lawv maj mam poob ntau xyoo. Feem ntau qhov kev ua tsis tiav yog tus tsav tsheb, uas tuaj yeem hloov pauv ntawm nws tus kheej hauv ntau cov qauv yam tsis tau hloov tag nrho lub vaj huam sib luag.
Lub 2x4 coj vaj huam sib luag tiaj tus lub teeb sawv cev rau kev paub tab, pov thawj thev naus laus zis zoo kawg nkaus rau qhov chaw ua haujlwm. Kev sib xyaw ua ke ntawm cov qauv tsim, lub teeb pom kev zoo, kev txuag hluav taws xob zoo, thiab kev saib xyuas tsawg kawg tsim ib qho teeb meem rau kev saws me nyuam. Kev teeb tsa yooj yim thiab lub sijhawm them rov qab sai tshem tawm cov teeb meem ib txwm muaj rau kev hloov kho LED.
Rau cov chaw ua haujlwm tseem tab tom ua haujlwm fluorescent, kev hloov mus rau 2x4 coj vaj huam sib luag lub teeb vaj huam sib luag muaj cov txiaj ntsig kev ua haujlwm tam sim ntawd - cov nqi hluav taws xob qis dua, txo qis kev hu xov tooj, lub teeb zoo dua -thaum txhawb nqa lub hom phiaj dav dav. Cov qauv tsim qauv ua kom ntseeg tau tias muaj kev sib tw, tus nqi sib tw, thiab cov neeg ua haujlwm paub txog ntau xyoo tom ntej.
Cov ntaub ntawv
Illuminating Engineering Society (IES) - Cov qauv teeb pom kev hauv chaw ua haujlwm thiab cov lus qhia taw qhia taw qhia
National Renewable Energy Laboratory - Chaw ua haujlwm teeb pom kev lag luam kev tshawb fawb, 2024
Design Lights Consortium (DLC) - LED vaj huam sib luag ntawv pov thawj cov qauv thiab cov ntaub ntawv ua tau zoo
US Department of Energy - LED lifespan thiab zog efficiency data, 2024-2025
Kev lag luam LED tuam ntxhab - Kev qhia tshwj xeeb rau 2x4 vaj huam sib luag (1000Bulbs.com, LEDMyPlace, Kev Lag Luam LED Teeb)
Kev suav nqi hluav taws xob raws li US Energy Information Administration cov nqi lag luam
